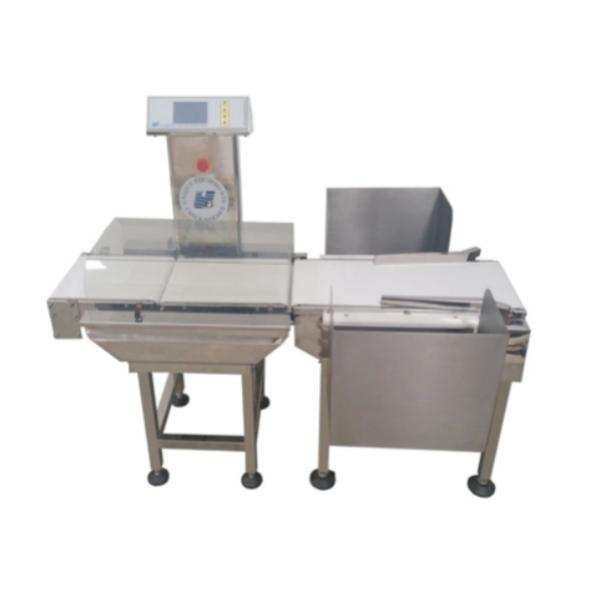

    Checkweigher Combinations with Metal Detection

    Checkweigher Combinations with Metal Detection


    Combined checkweigher-metal detection systems represent the pinnacle of production line quality control, merging two essential inspection technologies into a single, space-saving unit. These advanced systems simultaneously

    verify product weight compliance while screening for metallic contaminants - from tiny metal fragments to larger foreign objects.


    Integrated System Architecture

    • Unified Frame Design: Single stainless steel (typically 304 or 316 grade) housing containing both systems

    • Sequential Inspection Process:

      1. Initial Product Scanning: Metal detection occurs first to prevent contaminated products from affecting weight measurements

      2. Precision Weighing: Dynamic weighing cell captures exact product mass

      3. Automated Sorting: Dual-rejection capability for both weight and contamination failures


    ParameterSpecification
    Detection Sensitivity0.3-2.0mm (Fe), 0.5-2.5mm (Non-Fe), 0.8-3.0mm (SS)
    Frequency OptionsSingle (50-1000kHz) or Multi-Frequency (5-1000kHz)
    Aperture Size150mm × 150mm to 600mm × 600mm
    IP RatingIP65 to IP69K for washdown environments
    Weighing Accuracy±0.05g to ±5g (product-dependent)
    Maximum Capacity5g to 50kg
    Weighing Speed100-800 products/minute
    Minimum Division0.01g to 10g
    Weighing Time50-200ms
    Diverter Gate≤350ppm
