| Brand Name : | SMARTWEIGH |
| Model Number : | HWTS 7610 |
| Certification : | ISO/CE/SGS |
| Price : | Negotiable |
| Payment Terms : | LC,TT, Weston Union, MoneyGram |
| Supply Ability : | 100 sets per month |
| Delivery Time : | 3-8 weeks |

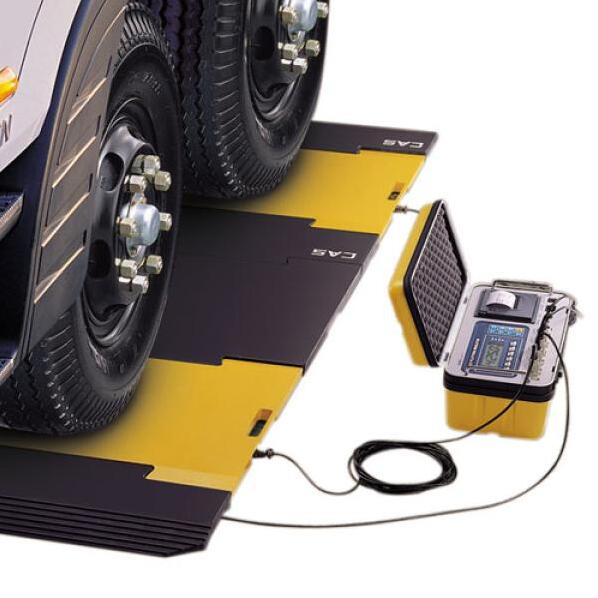

Overload of vehicles is important reason that accelerates damage to highway and cause traffic accidents. In order to provide a convenient accurate law enforcement means for our country traffic management departments, we developed Wire Portable Truck Axle Scales, providing the powerful ways for traffic manage department in the implementation of effective transfinite overload management. In recent years, this system is upgrading continuously according to use experience and policy adjustment.
| Model | CAS-RW-P | |
| Capacity | 1T/2T/5T/10T/15T for axle load | |
| Model | Capacity | Outer Sizes(mm) |
| RW-01P | 1000kg x 0.5kg | 500 x 400 x 39 |
| RW-02P | 2000kg x 1kg | 500 x 400 x 39 |
| RW-05P | 5000kg x 2kg | 500 x 400 x 39 |
| RW-10P | 10000kg x 5kg | 900 x 500 x 39 |
| RW-15P | 15000kg x 10kg | 900 x 500 x 39 |
| Accuracy in Static | 0.1% F.S | |
| Accuracy in Dynaimic | 1.5%F.S(1-5Km/h),3-5%F.S(5-10km/h) | |
| Over load | 150%F.S | |
| Division/Accuracy | 2/5/10/20 kg | |
| Rated working temperature | -20℃ - 40 ℃ | |
| Power supply | Built-in 6V/10AH lead-acid battery, external DC power(7.5V/1AH or 12V/1A) | |
| Weighing speed | ≤10km/h | |
| Connection | 10m cable(according to user’s requirement) | |
| GW & NW | 125KG/ 115KG | |
| One set include | Four rubber ramps and two weighing pads | |
Feautures and Advantages: Characteristics of CAS portable axle weigher: Characteristics Service Terms: 1. Warranty: One year 2. Export port: EXW factory or FOB shanghai 3. Trade terms: EXW, FOB, C&F 4. Payment terms: 50% deposit, balanced before shipping. 5. Place of origin: China 6. Packing: Carton boxes for indicator, aluminum box for axle weighing pads. 7.Delivery time: stock for sell. 8. Certificate: ISO. CE 9. Production Avalability: 100 Sets per day |
|
|
